Module Type

SolartrixE 1200-400-60

SolartrixE 1200-400-65

Maximum Power-Pmax  （W）

60

65

Maximum Power Voltage-Vmp  （V）

9.6

10.06

Maximum Power Current-Imp  （A）

6.25

6.48

Open Circuit Voltage-Voc  （V）

12.3

12.36

Short Circuit Current-Isc  （A）

6.55

6.81

Power Tolerance  （W）

±5

Maximum System Voltage  （VDC）

1000

Maximum Series Fuse Rating  （A）

10

Operating Temperature  （°C）

-40~+85

Pmax Temperature Coefficient  （%/°C）

-0.43

Voc Temperature Coefficient  （%/°C）

-0.30

Isc Temperature Coefficient  （%/°C）

0.05

STC: lrradiance 1000 W/m2  module temperature 25°C AM=1.5, Power measurement tolerance: +/-5%

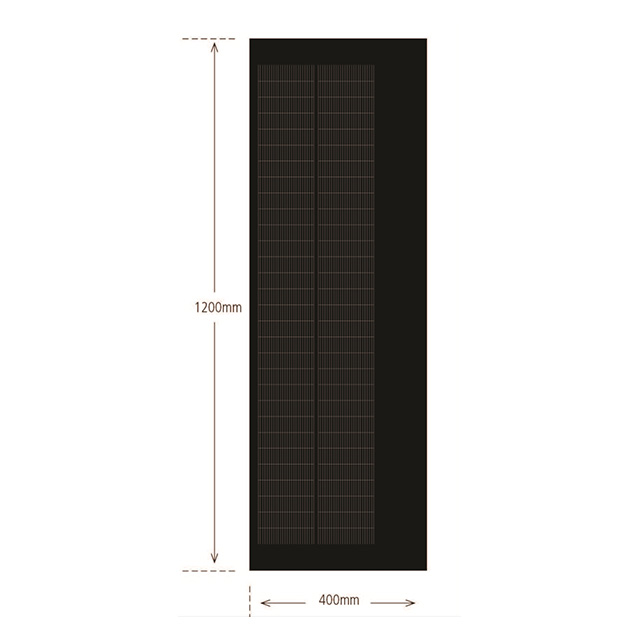

External Dimension

1200*400*6 mm

25 Years 80% Power Output Warranty

12 Years 90% Power Output Warranty

10 Years Material & Workmanship Warranty

Weight

6.6Kg

Solar Cell

Mono 91x182 mm  （18pcs）

Glass to Glass

2.5 mm tempered glass, low iron

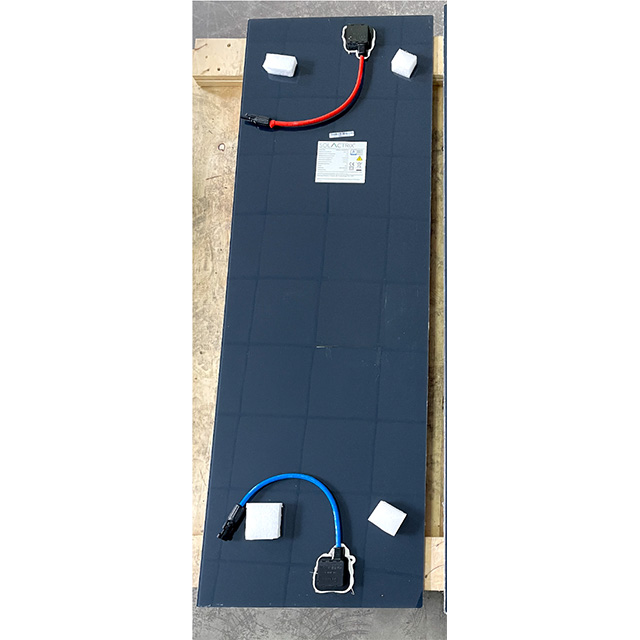

Junction Box

IP67

Output Cable

4.0 mm2 ,cable length:350-900 mm

Connector

PV-ZH202/05-6，05-8

Maximum Snow Load

5400 Pa or 550 Kg/mm2

Maximum Wind Load

2400 Pa or 244 Kg/mm2

Hail Resistance

Max. Ø 28 mm,at 23 m/s

Fire class rating

Class C

PV Modules require Nulok Roofing system for installation.

Company name:Nanjing Solglass Science & Technology Co., Ltd. Brand:Solglass

Address:No.28 East Tuanshan  Road, Lishui Development zone, Nanjing, 211200 Jisngsu ，P. R. China

Manufacturer:Changzhou Daily Energy Co., Ltd.

Manufacturer  address:No. 9 Heshanhuan Road, Jintan District, Changzhou, 213200 Jiangsu P.R. China
