Nanjing Solglass Science&Technology Co., Ltd. is a high-tech enterprise in Jiangsu province of China, it was established in the year of 2006. It is a professional solar roof solution supplier engaging in scientific research, production, design and sales. Our products and design solutions are in an international leading position. Our solar tile brand “SOLARTRIX” has passed TUV certification, British MCS certification and Australian CEC certification. It is popular in Europe, Australia and American etc..
Our company has established long term cooperation with SAINT-GOBAIN, TESLA, NULOK Global and other international well-known enterprises since 2014, and has built high-quality and reliable solar roofs for customers in UK, Germany, Spain, Denmark, France and other regions, our solar roofs are widely used in residential and commercial applications.

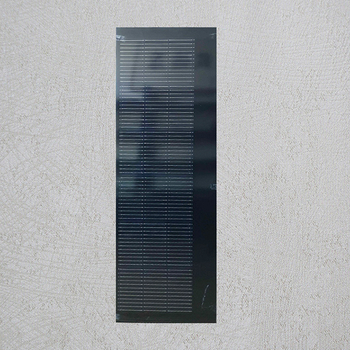

Our solar tiles fit into rather than onto the roof, which means that the integrity of the roof line is maintained
01
Environmental Protection
They convert light directly into electricity, without generating any waste or harmful greenhouse gases, saving approximately 450kg of carbon dioxide emissions per year for each kW peak installed.
02
Better Value
We have better value with solar tiles, safe products and low prices
03
After Sales Guarantee
Easy to install, 30 year warranty and easy to repair products，more safety and security
04
HOT PRODUCTS
Board
This area can be fully edited and gives you the opportunity to introduce yourself, your website.

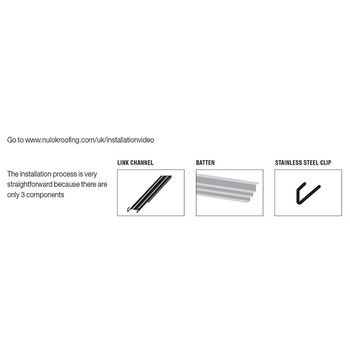

The Nu-lok™ fastening system is a brand new approach to slate roof installation. Any professional roofing contractor can install this roof. It requires no traditional slate roofing techniques to install. And, did we mention, you can walk right on the roof during the installation? See, step-by-step, how it all works below.
Step 1
The Nu-lok™ fastening system starts with a conventional waterproof membrane installed over the plywood deck. As with any roof, the membrane must be fully waterproof and able to shed moisture off the eaves.
Step 2
Once the membrane is installed and inspected, a series of parallel counter battens are nailed perpendicular to the roof eave. Counter battens should be nailed through the plywood directly into the rafters. The spacing of the counter battens should not exceed 24-inch centers. Installing the system on counter battens elevates the Nu-lok system above the deck and allows natural ventilation. This also prevents water condensation from being trapped behind the horizontal battens.
Step 3
Galvalume battens are then laid horizontally across the counter battens and parallel to the eave. The horizontal battens are fastened with galvanized ring-shank nails through both the counter battens and plywood deck into rafters. The battens are installed at 12-inch spacing with care taken to insure exact spacing and parallel runs.
Step 4
With the battens nailed down and starting at any row on the roof, link channels are positioned and locked into the upward facing flange on the battens.
Step 5
The link channel eliminates the need for horizontal overlap between slates, as each link channel spans the horizontal gap between the two slates it supports, catching water seepage and conducting it onto the next course of slate below. In essence, each link channel contains a 3/4” wide, 5/32” deep miniature gutter.
Step 6

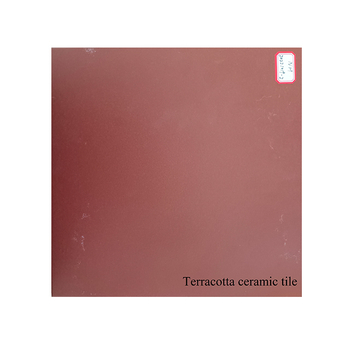

Natural or ceramic slates are then placed on the link channels and centered. The front edge of each slate is slotted into the 316 stainless-steel retaining clip fitted into each link channel. When correctly positioned, the two front corners of each slate are suspended by the clip, and the side edges of each slate are centered over the internal gutter in the link channel.
Step 7
The next slate is then butted against the one next to it, and secured at the corner by a stainless steel clip. The process is repeated to complete a horizontal course. Another course is then started, working up the roof, by locking the next row of link channels into place. Each row of link channels also secures the top of the slates in the row below. No nails are used. The stainless steel clip serves as the fastener in the Nu-lok suspension system. The clips are black oxidized, and while visible up close, their non-reflective black color and low-profile design make them nearly undetectable from the ground. Clips are inserted into the link channels at the job site before loading on the roof.
Step 8
Roof Valleys.As with any hard roofing product, attention to valley flashing details is extremely important. However, unlike most roofing systems, the Nu-lok suspension system uses four layers of valley protection. The first layer of valley flashing and the waterproof membrane are both installed prior to installing battens. A single layer of 26-gauge galvanized sheet metal is bent and fitted into the valley. Once the sheet metal is seated, a layer of waterproof membrane is rolled over top. The valley is now prepared and the Nu-lok battens can be installed.
Step 9
Upon completion of the batten installation, the valley soakers can be prepared. The soakers serve as the third layer of protection. These 9.25-inch wide by 20- to 24-inch long strips are folded on site to approximate the valley angle. They are then fitted into the valley and secured on the batten.
Step 10
With valley soakers installed, the valley is ready for slate. Both natural and Nu-lok ceramic slate can easily be cut to fit into the valley. Field measurements are taken and each side of the valley is closed with a custom-cut slate. With closed valleys, care must be taken to insure a clean accurate fit of the valley slates. With open valleys, use one long top-to-bottom flashing in the valley, leaving the horizontal battens cut short to allow installation of the flashing.
Step 11
With no unsightly valley flashings exposed, the closed finished valley is impervious to leaks. Unlike a traditional slate installation, Nu-lok allows for valleys to be completed prior to installation of field slate. This gives a large unimpeded work space on the roof. Materials can be easily loaded to the roof, cut and installed without damaging or replacing existing courses of slates.
